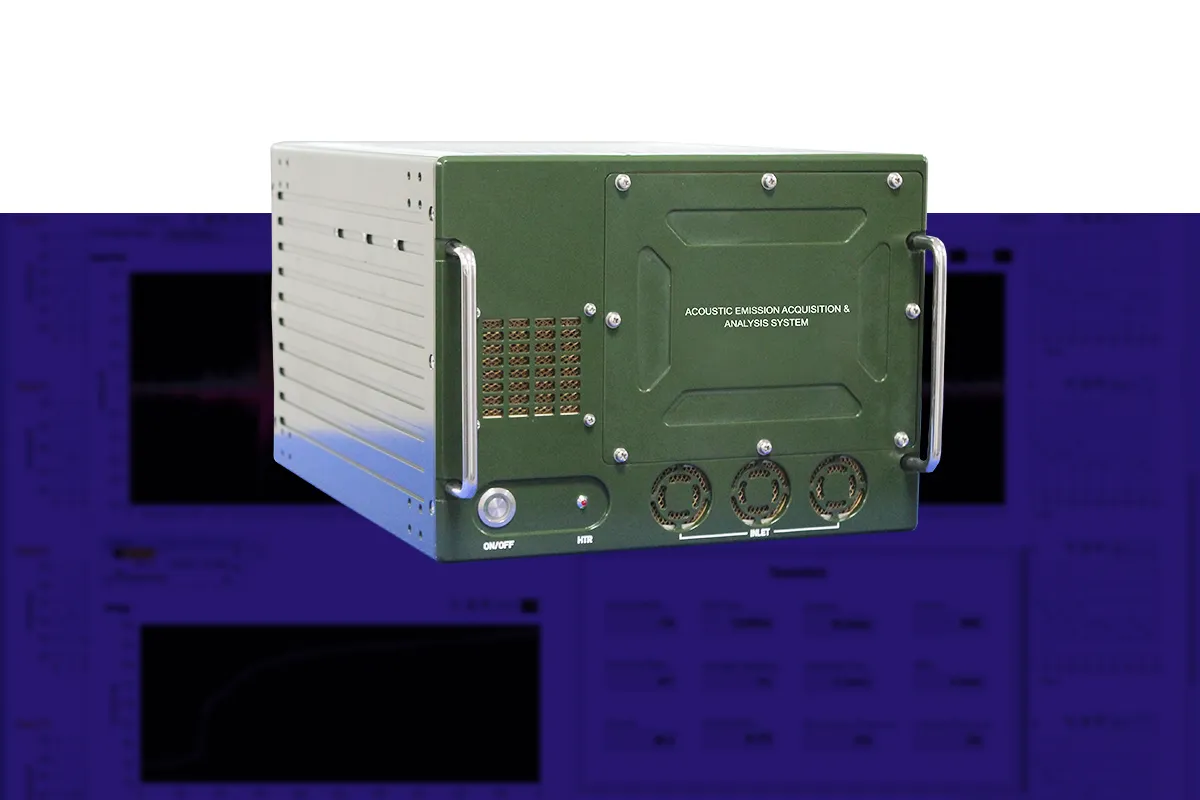

Digilogic’s Acoustic Emission Acquisition & Analysis System is developed with latest technology and having 32 Channel Simultaneous Acoustic Emission feature, wave form processing display and storage. The inbuilt user-friendly software has acquisition, analysis and graphing capabilities and enhanced features to ease data analysis. The system is also designed with ruggedized solution for temperature range of -20 to 55 degree celsius.

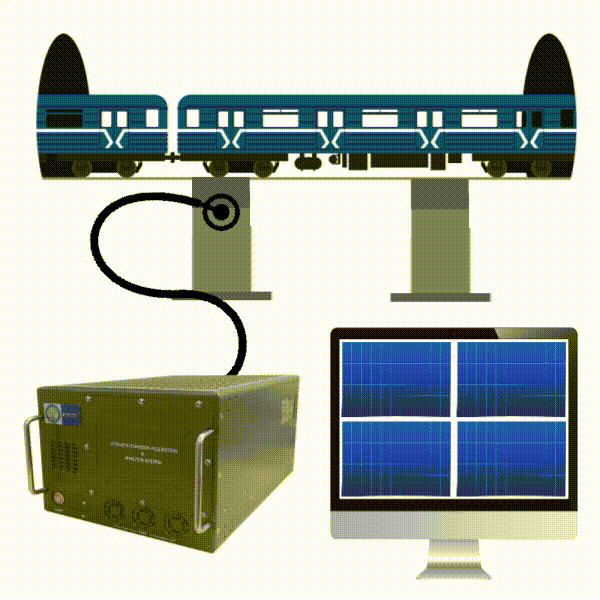

Our Indigenously developed system has potential applications in Defence & Civil Sectors such as:
|
Parameter
|
Specifications
|
|---|---|
|
Processor |
Intel Xeon E5 or better |
|
RAM |
DDR4, 24 GB |
|
Storage |
500 GB SSD |
|
Peripherals |
2 x USB 3.0, 4 x USB 2.0, 2 x Gigabit Ethernet LAN and 1 x DisplayPort |
|
No. of Input Channels |
16 per module, can be extended upto 32 channels |
|
ADC Type |
16-bit resolution |
|
Voltage Level |
± 10V |
|
Simultaneous Sampling Rate |
3.5 MSPS |
|
AE Parameter Extracted |
Amplitude in dB, Rise time, Signal Strength, RMS value, Counts to Peaks, ASL etc. |
|
Signal Configuration |
Hit Definition Time, Peak Definition Time, Hit Lockout Time, Max Duration. |
|
Software Settings |
Threshold, Offset, Scale Factor, Graph Filtering, Sampling Rate, Record Length. |
|
Software Filters |
Band Pass Filter, Low Pass Filter, High Pass Filter. |
|

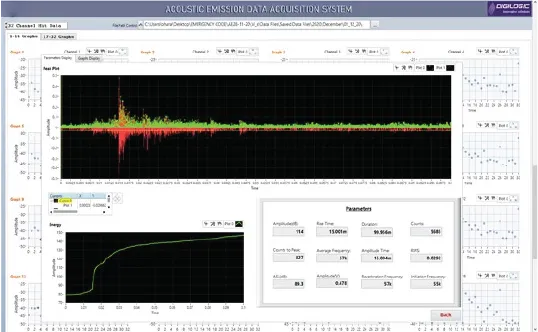

Graphical View types |
Real Time Raw Data, Amplitude vs Hit data, Parameter vs Parameter |
|
File Saving Options |
Raw data of each Channel is saved in Excel (.csv), Binary file formats. |
|
Environment Specifications |
MIL-STD EMI/EMC Qualified with JSS55555 Specifications. |
Explore product details, specifications and features engineered for your needs.
