Cable Harness Tester

cable harness tester

We offer a full turnkey solution to all harness testing and cable testing requirements, not only the supply of Test Hardware but the development of Test Software and Hardware Interfaces customized to our client’s application.

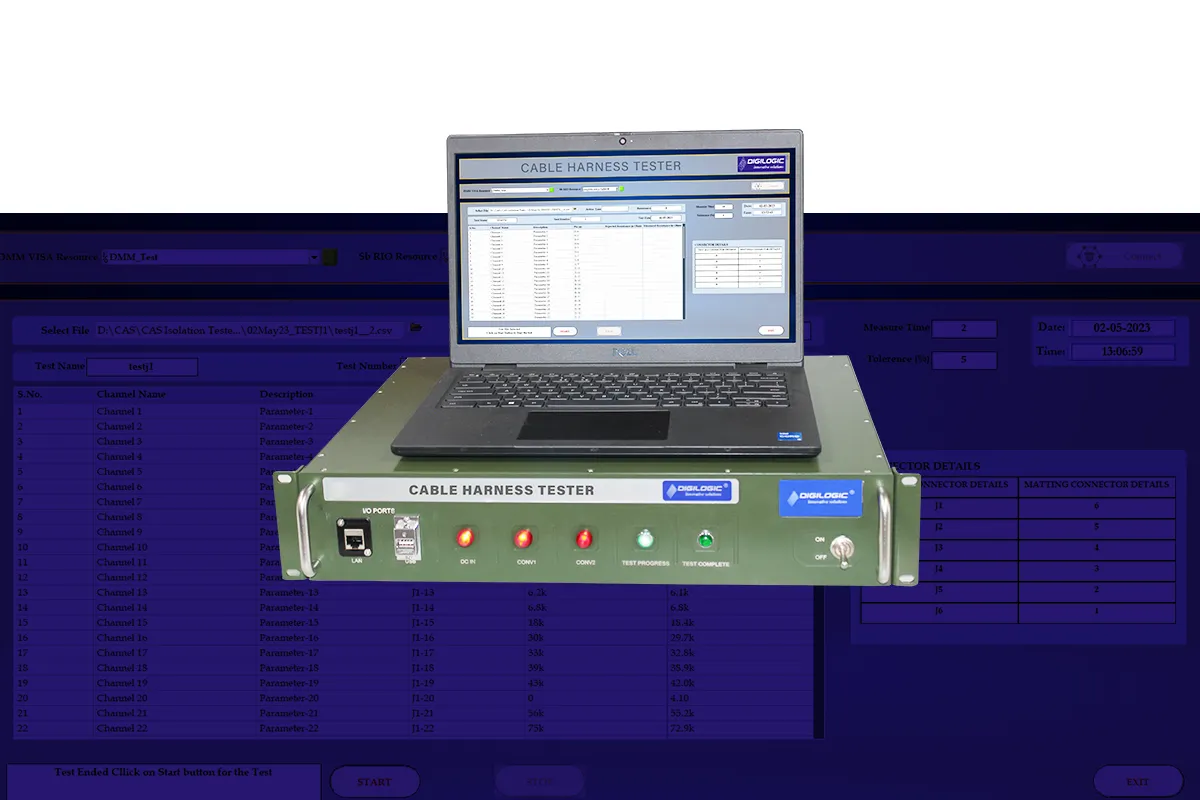

Digilogic’s Cable Harness Tester is fast, accurate and easy to use. It is being designed using the latest available technologies to provide a flexible and adaptable product line that meets the changing needs of wire harness manufacturers.

Our modern developing capabilities assure that our products are not only made on time and at the best price but also satisfy client’s specific requirements.

Technical Specifications:


Continuity: 1 Ω - 100 Ω (±1 Ω), 100 Ω - 500 K Ω (±1 Ω, ±1%), 500 K Ω - 2 M Ω (±5%)

Shorts: 1 K Ω - 2 M Ω (± 20%)


Diodes: Checks for proper orientation

Resistors: 1 Ω - 100 Ω (±1 Ω), 100 Ω - 500 K Ω (±1 Ω, ±1%), 500 K Ω - 2 M Ω (±5%)

Capacitors: 100pF to 500uF (± 5% to 20% based on capacitor type, ±10pF)

4-wire Mode

.005 Ω - 100 Ω (± .005 Ω, ± 1%)

Test Voltage

14 VDC maximum (Automatically selected)

Test Current

5 mA DC maximum (Automatically selected)

Insulation Resistance:

Voltage Range50-1000 VAC
Insulation Resistance Range5 M Ω - 1 G Ω (± 10%)
Control InterfaceConnectivity with PC/Laptop
Test Point Capacity64-1024 test points
WeightAround 10 kgs
Operating Temperature0-50ºC

Ordering Information:

Part Number: DSPL-CHT-XXXXXXXX - No of Test Points

Cable Harness Tester
