Digital Telemetry Receiver

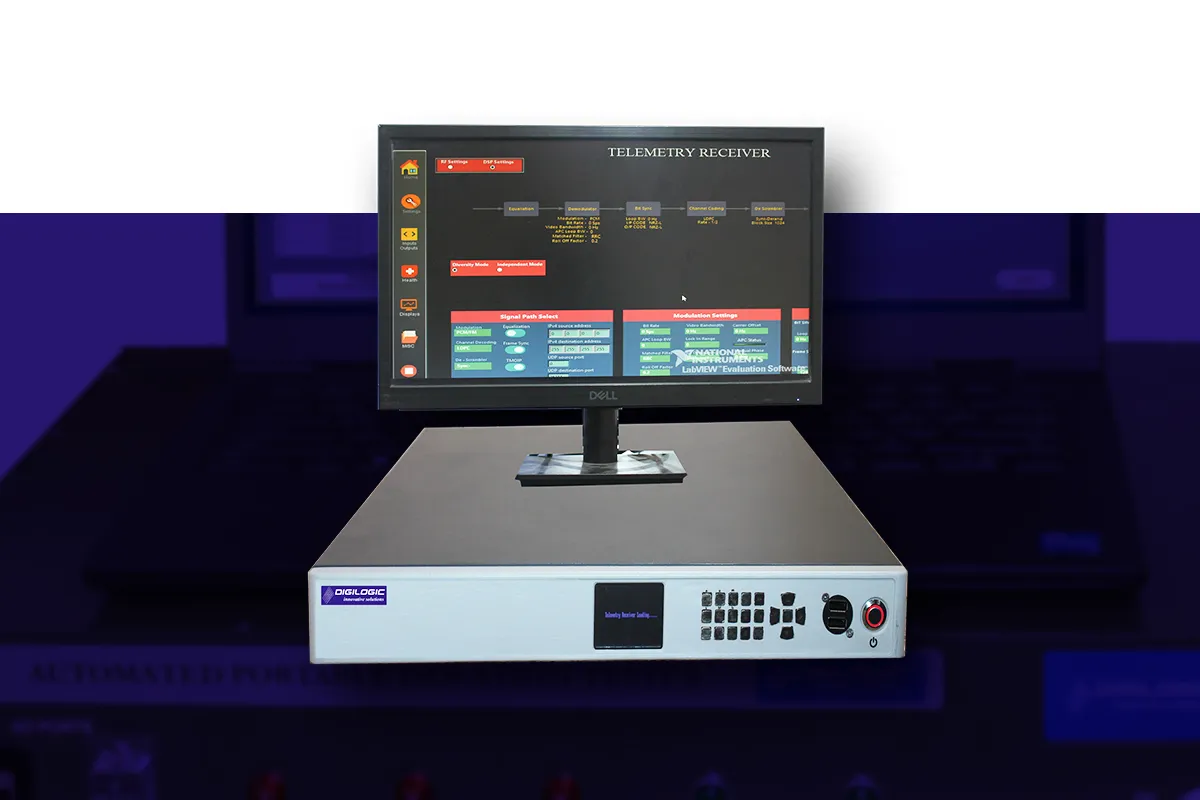

Digilogic’s Telemetry receiver design is highly flexible and provides comprehensive link support for satellite and flight test ground station applications in a fully integrated package. Our telemetry receiver design features FPGA based signal processing and software defined radio technology in the form of digital telemetry receivers, waveform & signal processors.

A variety of configurations (Single, Dual) and waveforms (AM, FM, PM, BPSK, QPSK & SOQPSK) are available with standard data rates from 40 Mbps down to 100 kbps. It also supports Automatic Gain Control, AM Tracking, Diversity Combining, Equalization, Demodulation of PCM-FM & SOQPSK-TG, Bit Synchronization, Frame Synchronization, LDPC and Convolutional Decoding, and Telemetry Over IP (TMoIP) as per IRIG Standard.

Telemetry Receiver system also has an in-built test signal generator, to test the performance of complete receiver chain without any external source. The system also provides access to downconverted IF signals, Bit sync outputs, Data & Clock signals for analysis with any external systems. All these I/Os are available through connectors on rear side of the unit. As the system design is indigenous & FPGA based, any kind of customization needed towards any new modulation schemes can be incorporated in the system.


  • Dual Channel RF (S-band) and IF Receiver
  • Data rates up to 40 Mbps
  • Eye pattern diagram
  • Spectrum Display
  • I/Q constellation diagram
  • Trellis Detection for improved performance
  • Diversity Combiner and Equalizer
  • Convolutional and LDPC Decoding
  • Decryption, Frame Synchronization
  • AFC, AM Demodulation for Tracking
  • Telemetry over IP (TMoIP ) Support
  • Supports display over ethernet
  • Customizable for various other modulation schemes and data rates


  • Telemetry tracking and reception
  • Aircraft and UAVs flight testing
  • Low Earth Orbit (LEO) satellite tracking and data reception

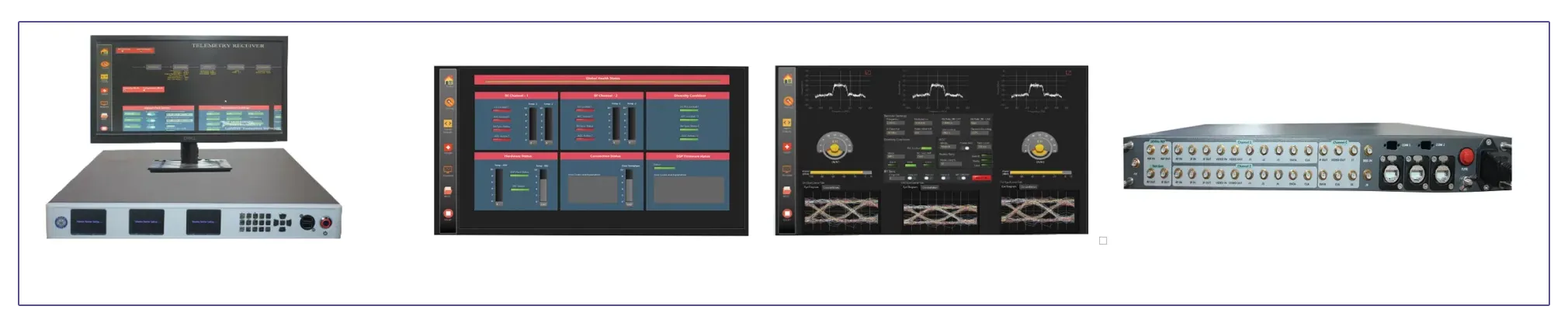

digital telemetry receiver
