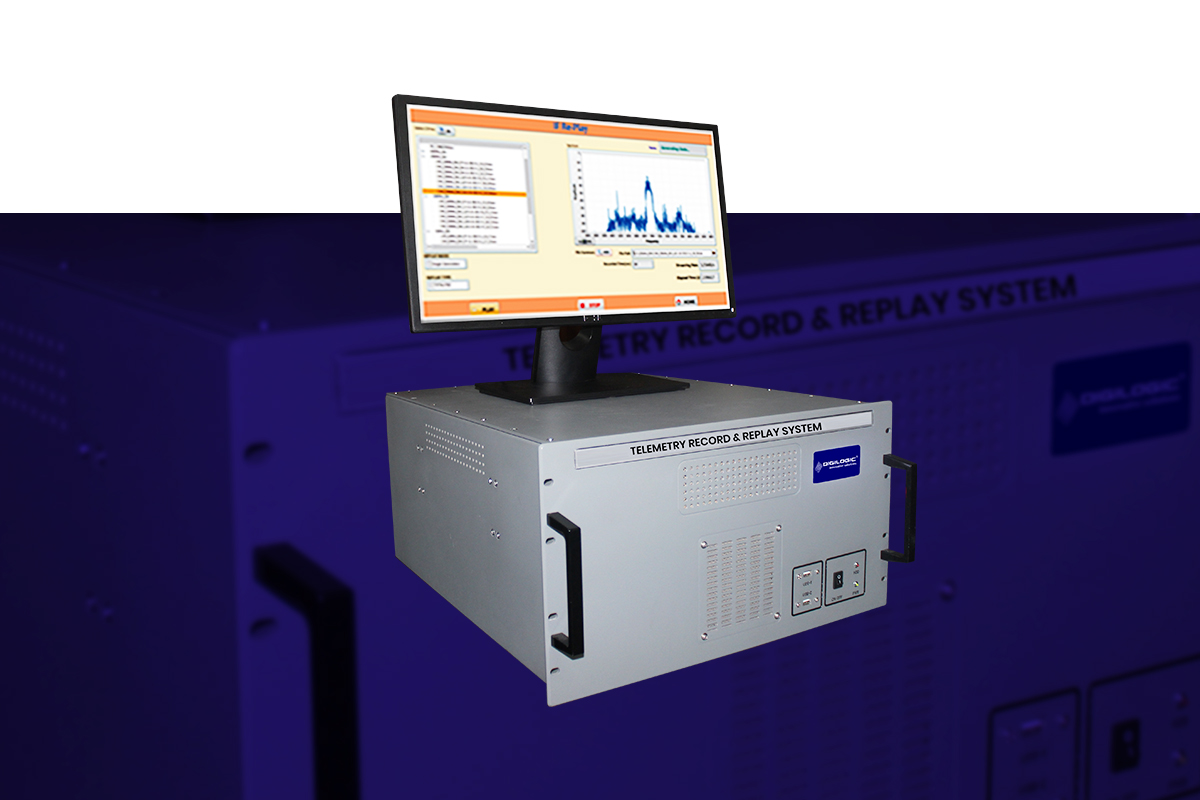

Digilogic’s Telemetry Record & Replay System DLRR-70XXX model is capable of recording live telemetry data at various stages for a period of 2 to 4 hours without user intervention. The recording media uses the latest mSATA solid state drive technology. Each SSD connects to the controller chip using a 6 Gb/s SATA interface. The board connects to the chassis PXIe backplane interface with a PCI Express Gen2 x 8 interface supporting transfer rates over 3 GB/s (24 Gbps).
|
Intermediate Frequency (IF)
|
|
|---|---|
|
IF Input/Output |
2 or 4 Channels |
|
Frequency Range |
70 ± 20 MHz BW |
|
Dynamic Range |
-30dBm to 5dBm |
|
No of Bandwidths |
8 BW (5MHz - 40MHz) |
|
Impedance |
50 Ω |
|
06 |
O/P Power Range |
|
ADC Resolution |
14 bit |
|
DAC Resolution |
16 bit |
|
Clock Source |
External or Internal |
|
Interface |
SMA or BNC |
|
DIGITAL/BIT SYNC
|
|
|---|---|
|
No of Input/Output |
8 to 16 Channels |
|
Data Type |
PCM code (Data & Clock), PCM Bi-Ø |
|
PCM Data |
NRZ-L/M/S, Bi-Ø -L/M/S & RNRZ-L |
|
Signal Level |
TTL (0-5V) |
|
Signal Rate |
10 kbps - 40 Mbps |
|
Clock Source |
External or Internal |
|
Clock Source |
External or Internal< |
|
Interface |
BNC |
|
MECHANICAL
|
|
|---|---|
|
Dimensions |
230mm X 482mm X 680mm |
|
Rack Mountable |
19” Standard |
|
Connectors* |
Rear / Front |
|
Display* |
10.4” Integrated |
